Good morning ladies and gentlemen. I thought I would share what we have been working on. We are in the process of building a new rotary coal tipple . It will be built from aluminum just like our turntables and transfer tables. We are making this so that it can be used with all the manufactures rotary cars, even if you have a mixed train of them. Here is an image from CAD to give you an idea of what it'll look like. Our design will allow the use of scale coal without issues of jambs.  We also have plans for additional pieces to compliment the coal industry on your layouts. These include an auto indexing sled to pull cars though the tipple, a flood coal loader and operating conveyor belts for transferring coal . We are working on finishing up the tipple in time to show it off at October York. There is definitely a lot of work that goes into designing these pieces, so we will get them to market as soon as we can.

CSX AL



OGR Advertiser

Original Post

Al,

Would you believe: My original layout plans for the Hidden Pass Junction RR included the Rotary Coal Tipple that had been announced by Lionel on the 2011 Volume II catalog, page 79. As we found out shortly afterwards, they decided not to offer the Tipple.

Instead, I used that layout space for a turntable – yes, a Millhouse River Studio 34” turntable. I have posted numerous pictures of this beautiful turntable, which doubles as an access hatch. The turntable also appeared on the cover of OGR magazine’s Run 292 June / July 2017 cover.

Now, where and how am I going to find space for your new Rotary Tipple? I have wanted a rotary tipple so badly that I have an almost completed design to build one myself, but have stopped short due to lack of space. But for yours, I may have to rethink the space search all over.

Alex

Happy O-Gauge Railroading!

  Alexander Müller

See My Mostly Completed Layout Here

YouTube: 03Patines

Latest Video: Passenger Trains

OGR Articles: Runs 256, 263, 267, 292

OGR  forum member since 26 January 2008

AL,
I did a bit of googling and it looks like rotary tipples have been around for some time.  I model the 40-50s.  So I do not have any rotary gondolas.  Would your rotary tipple fit into a layout set in my time period?

Also, I have your TT, it is of course incredible.  I have not purchased the indexer for it yet, but I plan to because I want the ability to control it with my CAB2.  Will I be able to control the tipple with my CAB2?

thanks!

Ingeniero No1 posted:

Al,

Would you believe: My original layout plans for the Hidden Pass Junction RR included the Rotary Coal Tipple that had been announced by Lionel on the 2011 Volume II catalog, page 79. As we found out shortly afterwards, they decided not to offer the Tipple.

Alex

I have one of the Lionel rotary coal dump (I'm not sure about the term "tipple"), so Lionel did indeed make one. There was a later version with command, I guess? Announced but not made? (Didn't care; had mine.) At any rate, they can be had.

Downside - I built part of my layout extension around this coal dump. Got a nice hole in the layout for it (didn't want the uphill/downhill thing). tested it (I had used it a bit years ago). All fit, all worked. Painted and weathered it to give it a 1950-ish look and lose all the 21st century safety yellow.

It then decided to self-destruct in both the hopper "grabber" mechanicals and the actual drive train (bad gearbox - goes an inch or two then stops except for the "click-click-click...." of the slipping/stripping gears). So, it will be eye-candy only. Or, it may be target practice one day. Repairable? Not really - and I am a believer in fixing things. Even if I got the parts, I wouldn't trust them for long. I know a way to simplify it to make it work manually (as in I control a motor and its speed, and the hopper "clamp" movement seems unneeded, as only one kind of car is to be used - a snug fit should do), but I'll never live long enough to get to it.

Ingeniero No1 posted:

Al,

Would you believe: My original layout plans for the Hidden Pass Junction RR included the Rotary Coal Tipple that had been announced by Lionel on the 2011 Volume II catalog, page 79. As we found out shortly afterwards, they decided not to offer the Tipple.

Instead, I used that layout space for a turntable – yes, a Millhouse River Studio 34” turntable. I have posted numerous pictures of this beautiful turntable, which doubles as an access hatch. The turntable also appeared on the cover of OGR magazine’s Run 292 June / July 2017 cover.

Now, where and how am I going to find space for your new Rotary Tipple? I have wanted a rotary tipple so badly that I have an almost completed design to build one myself, but have stopped short due to lack of space. But for yours, I may have to rethink the space search all over.

Alex

That’s a great story about the layout Alex. I love seeing all the fun everyone has with their turntables. That was a nice cover photo you had. I think the tipple will be another hot item for everyone. My plans right now will be to have the indexing sled to pull the cars through the tipple as a seperate accessory, since a lot of people just won’t have the extra space for it, but you will be able to operate the tipple as a independent unit.



T4TT,  I don’t think there will be TMCC control, but I will talk with my computer engineer and see what he says.

CSX AL



OGR Advertiser

OMG, this will be a game changer, having operating SCALE equipment.

I'm probably 4 - 5 years away from building my retirement layout, and it would be sooooooo cool to have a tipple, conveyor, and a flood loader!

Jim

Formerly Historic Frederick County, Maryland.  Now close to Baltimore.  Modeling both the Reading and B&O Railroads.



Caleb 10/14/15 - 10/19/19, I'll miss you buddy!

Ingeniero No1 posted:

Al,

What would be a realistic date when you anticipate that the tipple will be available?

Thanks!

Alex

Alex, My plan is to have the working prototype at York. Once this happens I will be ready to start producing them. All the hard work is done.

CSX AL



OGR Advertiser

EMD posted:

Al,

Any idea of the footprint?





The top plate that sits on top of the layout is approx. 11.75" x 15.75" . the outside of box that holds the drum is approx. 9.5" x 13.5" The motor mounting plate adds 3" off the box short dimension, but when installing into layout you would just insert this area first into hole of layout.



CSX AL



OGR Advertiser

Al, maybe the drive motor should be mounted on the outside of one of the below ground walls.  Just bring the shaft through the wall for the motor. My thoughts are that it would make for easier motor access and be a heck of a lot cleaner environment.

Dave Z

prrhorseshoecurve posted:

Nice! Now if you can only make a "universal" straddle loader ( a.k.a. Mi-jack) that will load and unload scale containers and trailers that would be awesome!

PLEASE make an intermodal crane!!!!!!  You could put a thin piece of metal in the top of the container and use an electromagnet in the gantry crane to pick it up and let it go.  There is one in HO made by Heljan that I debated gutting and putting in an O scale version but $750 is a bit high to experiment with.....

https://www.walthers.com/opera...-7-16-quot-33-x-57cm

BTW, I have one of the original brass rotary coal dumps made by Harry Roberts if you would like to see it....

Thanks,

Randy



I stopped over to Al’s house the other night to check out a couple things on his layout. He took the time to go over the details of the tipple and showed me some of the prototype parts. All I can say is WOW! Be prepared for a great operating accessory and get in line. He’s going to be very busy in the near future!

Jim Z "Torn between the New York Central and todays great railroads"!

Not all coal porters have the rotary couplers.  So does this tipple rotate one car at a time? Does this  require an engine to load one car at a time onto the tipple?      On the other hand, if your coalporters have the rotary couplers, then a consist can stay coupled together. Am I thinking right. Guess I have never seen one of these tipples in operation. Sorry for the ignorance.

jini5 posted:

Not all coal porters have the rotary couplers.  So does this tipple rotate one car at a time? Does this  require an engine to load one car at a time onto the tipple?      On the other hand, if your coalporters have the rotary couplers, then a consist can stay coupled together. Am I thinking right. Guess I have never seen one of these tipples in operation. Sorry for the ignorance.

This isn't Al's tipple but you can get an idea about operations

Very cool video. Thank you. A few questions....I am guessing those hoppers were pushed up the hill with closed couplers which were not engaged?  Or were those rotary couplers? I guess what I am trying to figure out is if someone buys one of these tipples, will you have to start buying coalporters with rotary couplers? I think MTH stopped producing the rotary couplers(I think).

Thank you Jim Z., Ben & Jim S. ! All is going well, making a couple tweaks on a couple of parts. I am really looking forward to showing this at York. We are slammed in the shop with trying to get orders finished up before York and get this new tipple done. I will need a few days at York to recover

CSX AL



OGR Advertiser

jini5 posted:

Very cool video. Thank you. A few questions....I am guessing those hoppers were pushed up the hill with closed couplers which were not engaged?  Or were those rotary couplers? I guess what I am trying to figure out is if someone buys one of these tipples, will you have to start buying coalporters with rotary couplers? I think MTH stopped producing the rotary couplers(I think).

Hi there. I work at a coal fired power plant that has one of the real thing.  Out in the 12" to the foot world, there are several different manufacturers of the railcars themselves, with differing dimensions.  The length is not standardized, which mean you can't guarantee you can dump cars without uncoupling.

Typically here we empty the first car in the cut, then push it through and uncouple it.  Then back up so the rotary coupler(s) of the next car is hanging out one end.  Dump the second car and push it out to the first one that got uncoupled.  Repeat until the string is completed.  I think we dump in 10 to 15 cars strings.

May God Bless us all.

jini5 posted:

Very cool video. Thank you. A few questions....I am guessing those hoppers were pushed up the hill with closed couplers which were not engaged?  Or were those rotary couplers? I guess what I am trying to figure out is if someone buys one of these tipples, will you have to start buying coalporters with rotary couplers? I think MTH stopped producing the rotary couplers(I think).

Those cars are Atlas with the rotating couplers   It should be very easy to put uncouplers on either side of the tipple  This would allow  uncoupling in position so no need for rotating couplers  In our video there is an uncoupling magnet on the exit side of the tipple   The cars come up the ramp coupled

CSX Al posted:

Thanks Larry. I just finished up the last bit of assembly of files in CAD, now off to laser cutting all the assembly parts. Here is the screen shot of the completed assembly.

Al, wow... that rotary dumper looks like it is going to be fantastic, can't wait to see more.

Thanks!

John

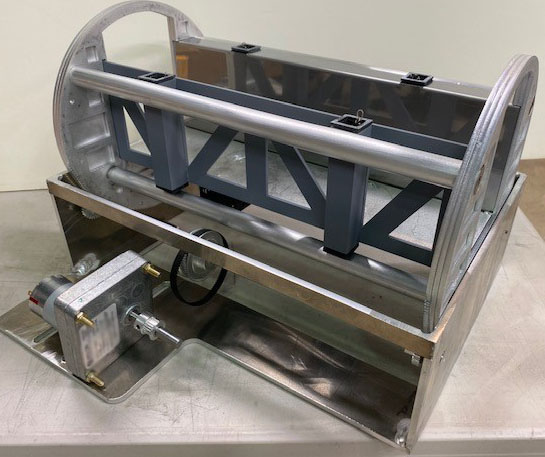

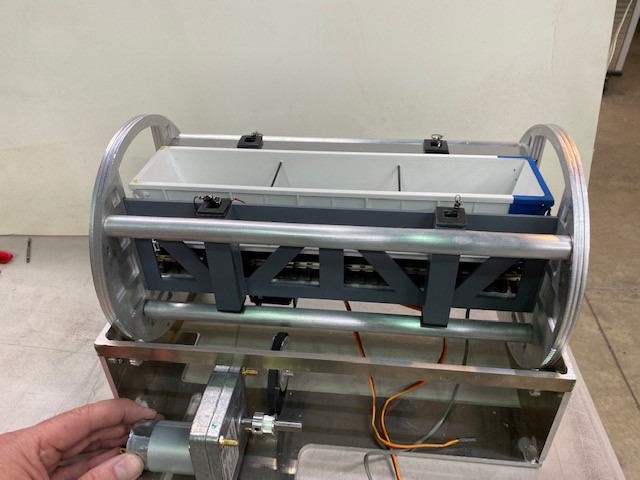

Tipple progress moving along. Spent day on assembly of parts and a few pieces to go. Here are a few photos. Need to connect top clamps to cables and hook up to motors under bridge deck. Still mostly in raw aluminum form.
jhz563 posted:

DSCN7126DSCN7121

That a D-10 dozed for scale in the foreground!

Thanks for the photos!



CSX AL



OGR Advertiser
